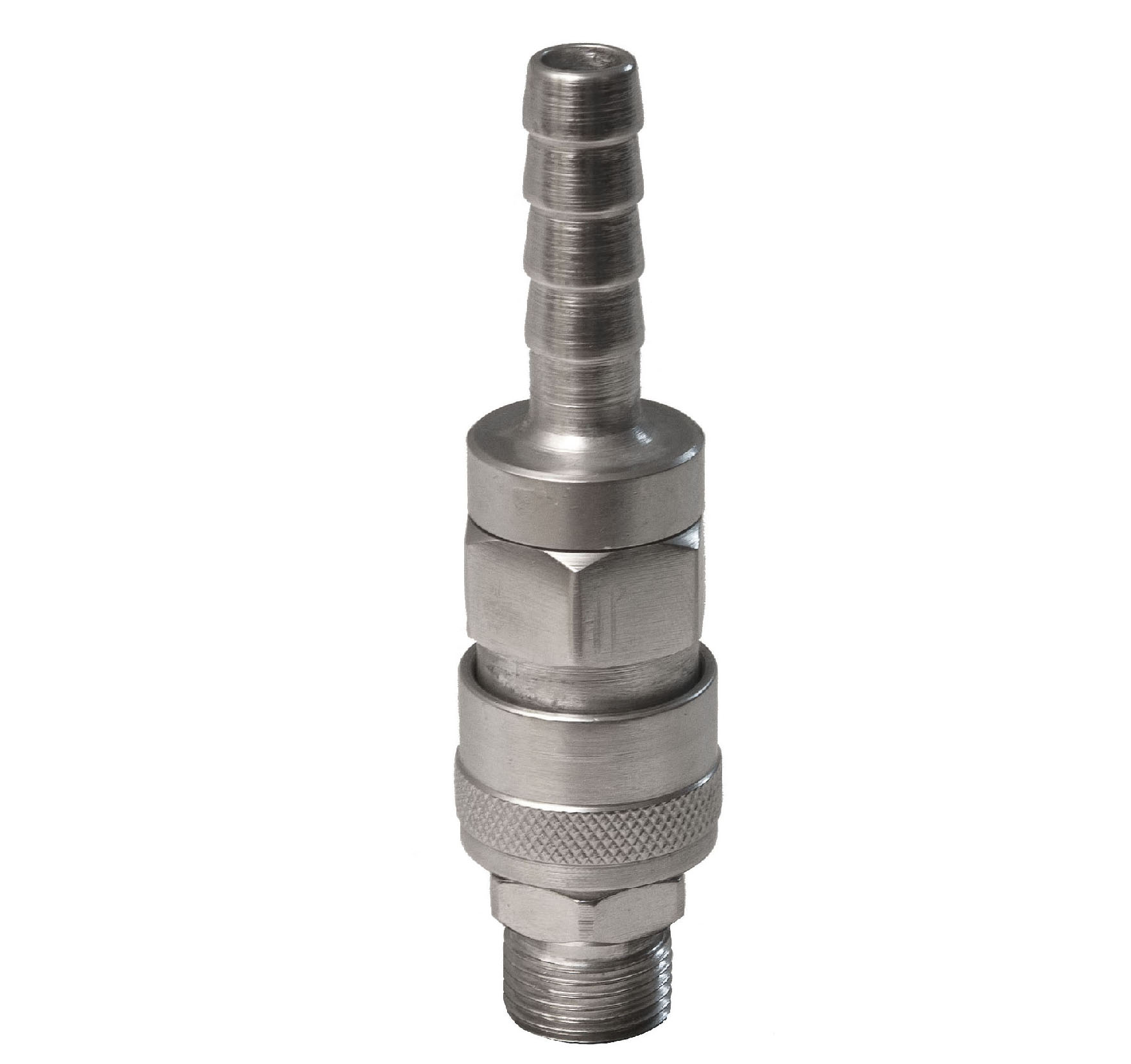

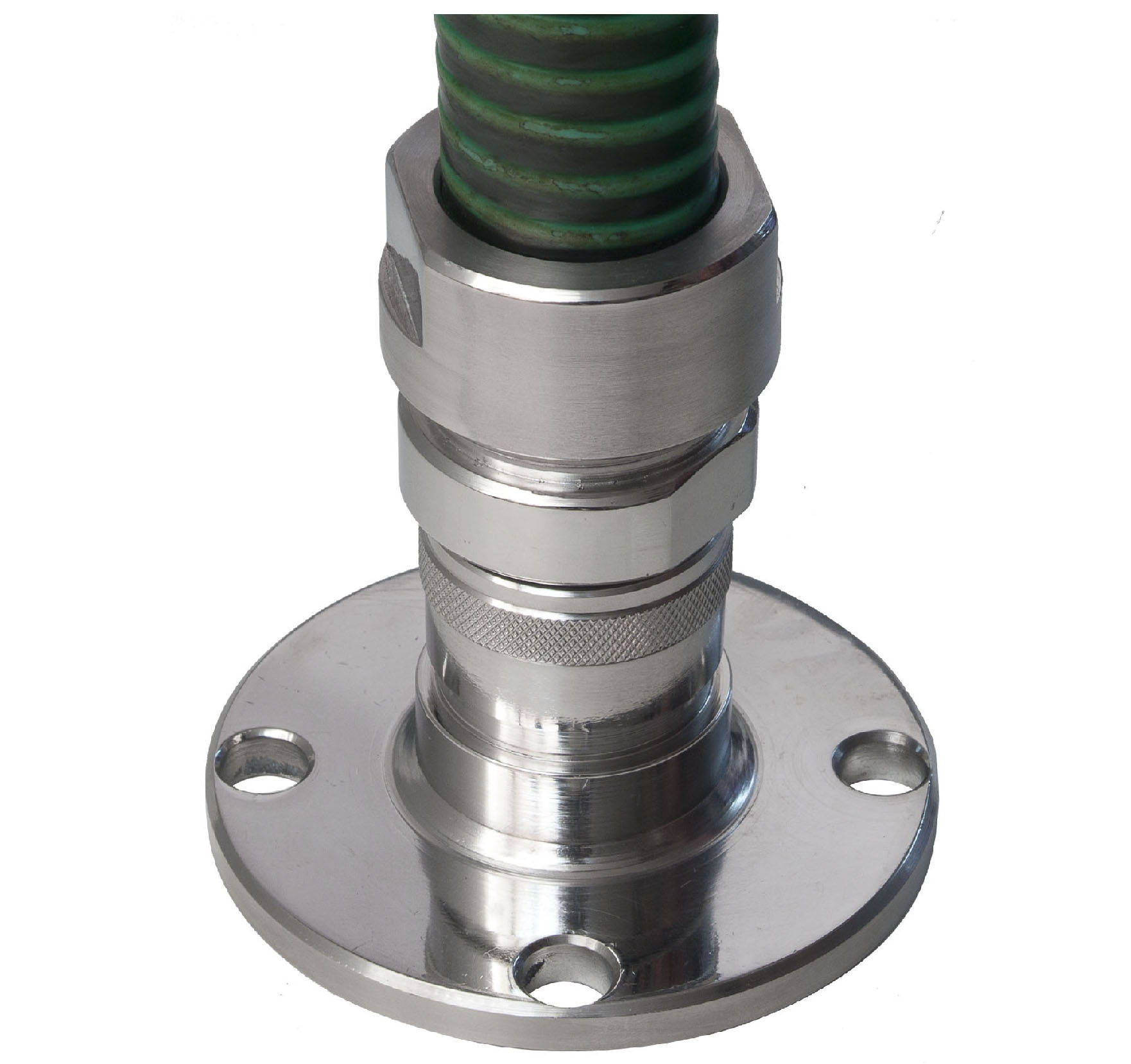

Through Quick Release Coupling is one of type of coupling has very simple valves mechanism which allows streamlined & smooth flow of the fluid without any notable pressure drop. Hence it is ideally suitable for high velocity fluids. We are one of the leading Through Coupling Manufacturers in India.

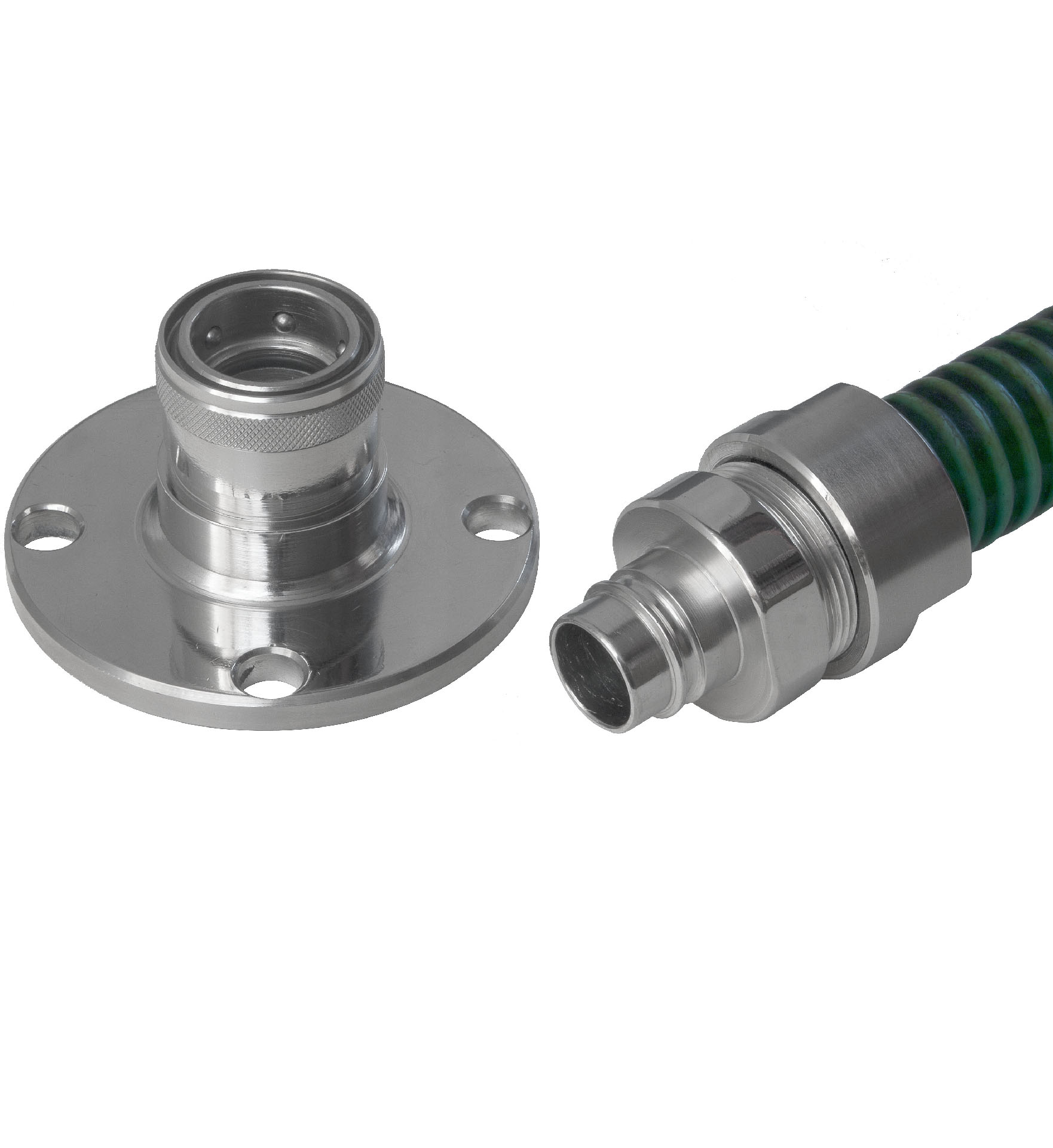

Construction:
- No valve - Open both ends.
- Lock system - Ball lock or pin lock.
- Standard material - CS, Stainless Steel, Brass, H. D. P. E. , & P. P
- Seals - Nitrile, Silicon, Teflon available on request.
- End connection -
- H - Hose nipple
- M - Male threads
- F - Female threads
Application :
Chemical plants, Ships, Petroleum & other industries.

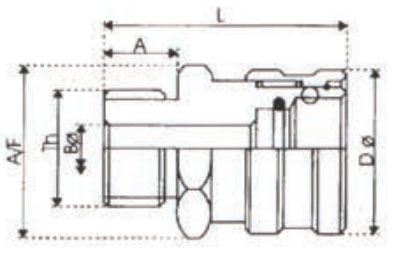

| MALE THREADING SOCKET | ||||||
|---|---|---|---|---|---|---|
| SIZE | L | D ∅ | A/F | TH | A | B ∅ |
| 06-SM | 37 | 22 | 19.1 | 1/4'' * 19 | 12 | 6.4 |
| 09-SM | 42 | 25.4 | 22.2 | 3/8'' * 19 | 13 | 9.5 |
| 012-SM | 47 | 25.4 | 22.2 | 3/8'' * 19 | 14 | 12.7 |
| 019-SM | 54 | 42 | 42 | 3/4'' * 14 | 19 | 19.1 |
| 025-SM | 60 | 48 | 50.8 | 1'' * 11 | 22 | 25.4 |
| 038-SM | 65 | 62 | 62 | 1-1/2'' * 11 | 25 | 38.2 |
| 050-SM | 70 | 75 | 75 | 2'' * 11 | 30 | 50.8 |

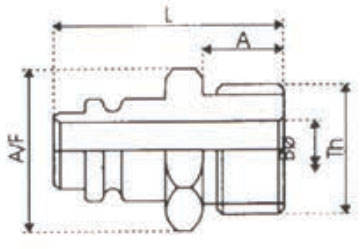

| MALE THREADING PLUG | |||||
|---|---|---|---|---|---|
| SIZE | L | A/F | TH | A | B ∅ |
| 06-PM | 37 | 14 | 1/4'' * 19 | 12 | 6.4 |
| 09-PM | 38 | 19.1 | 3/8'' * 19 | 13 | 9.5 |
| 012-PM | 39 | 25.4 | 1/2'' * 14 | 14 | 12.7 |
| 019-PM | 47 | 32 | 3/4'' * 14 | 19 | 19.1 |
| 025-PM | 56 | 35 | 1'' * 11 | 22 | 25.4 |
| 038-PM | 62 | 50 | 1-1/2'' * 11 | 25 | 38.2 |
| 050-PM | 68 | 62 | 2'' * 11 | 30 | 50.8 |

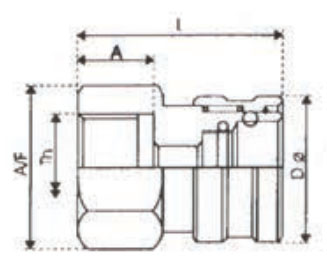

| FEMALE THREADING SOCKET | |||||
|---|---|---|---|---|---|
| SIZE | L | A ∅ | A/F | TH | A |
| 06-SF | 33 | 22 | 19.1 | 1/4'' * 19 | 12 |
| 09-SF | 38 | 9.5 | 19.1 | 3/8'' * 19 | 13 |
| 012-SF | 40 | 28 | 25.4 | 1/2'' * 14 | 14 |
| 019-SF | 46 | 42 | 42 | 3/4'' * 14 | 19 |
| 025-SF | 52 | 48 | 50.8 | 1'' * 11 | 25 |
| 038-SF | 57 | 62 | 62 | 1-1/2'' * 11 | 25 |
| 050-SF | 61 | 75 | 75 | 2'' * 11 | 30 |

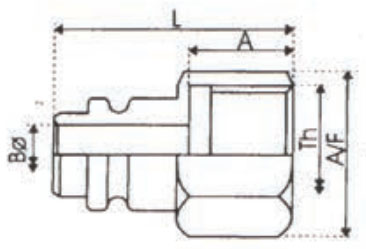

| FEMALE THREADING PLUG | |||||
|---|---|---|---|---|---|
| SIZE | L | A/F | TH | A | B ∅ |
| 06-PF | 35 | 14 | 1/4'' * 19 | 12 | 6.4 |
| 09-PF | 36 | 19.1 | 3/8'' * 19 | 13 | 9.5 |
| 012-PF | 37 | 25.4 | 1/2'' * 14 | 14 | 12.7 |
| 019-PF | 44 | 32 | 3/4'' * 14 | 19 | 19.1 |
| 025-PF | 51 | 35 | 1'' * 11 | 22 | 25.4 |
| 038-PF | 57 | 50 | 1-1/2'' * 11 | 25 | 38.2 |
| 050-PF | 63 | 62 | 2'' * 11 | 30 | 50.8 |

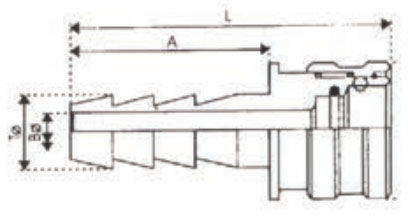

| HOSE PIPE SOCKET | |||||
|---|---|---|---|---|---|
| SIZE | L | D ∅ | T ∅ | A | B ∅ |
| 06-SH | 50 | 22 | 7.5 | 25 | 4.5 |
| 09-SH | 57 | 25.4 | 11 | 28 | 7.5 |
| 012-SH | 65 | 28 | 14 | 32 | 9.5 |
| 019-SH | 75 | 42 | 21 | 40 | 16 |
| 025-SH | 93 | 48 | 27 | 55 | 22 |
| 038-SH | 115 | 62 | 40 | 75 | 35 |

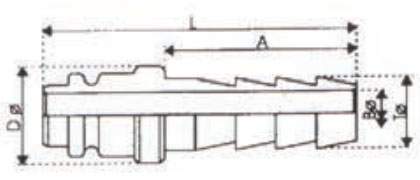

| HOSE PIPE PLUG | |||||
|---|---|---|---|---|---|
| SIZE | L | D ∅ | T ∅ | A | B ∅ |
| 06-PH | 50 | 14 | 7.5 | 25 | 4.5 |
| 09-PH | 53 | 19.1 | 11 | 28 | 7.5 |
| 012-PH | 57 | 25.4 | 14 | 32 | 9.5 |
| 019-PH | 68 | 32 | 21 | 40 | 16 |
| 025-PH | 92 | 35 | 27 | 55 | 22 |
| 038-PH | 113 | 50 | 40 | 75 | 35 |
