Single Shutoff Quick Coupling

Single Shutoff Quick Release Coupling have automatic shut off valve only in the socket. Therefore is used on the supply side. This type is popularly used for air piping, Connecting pneumatic tools, cooling water connections for molds and connections for breathing apparatus. Additional safety lock can also be provided.

Construction :

  • Valve - Automatic shut off valve only in the socket.
  • Lock system - Ball lock or pin lock
  • Standard material - Steel, Stainless steel, Brass, Aluminum
  • Seals - Nitrile, Viton, Teflon available on request.
  • End connection -
    • H - Hose nipple
    • M - Male threads
    • F - Female threads

Application :

Mining, Engineering, Aircraft & petroleum industries.

single shhutoff

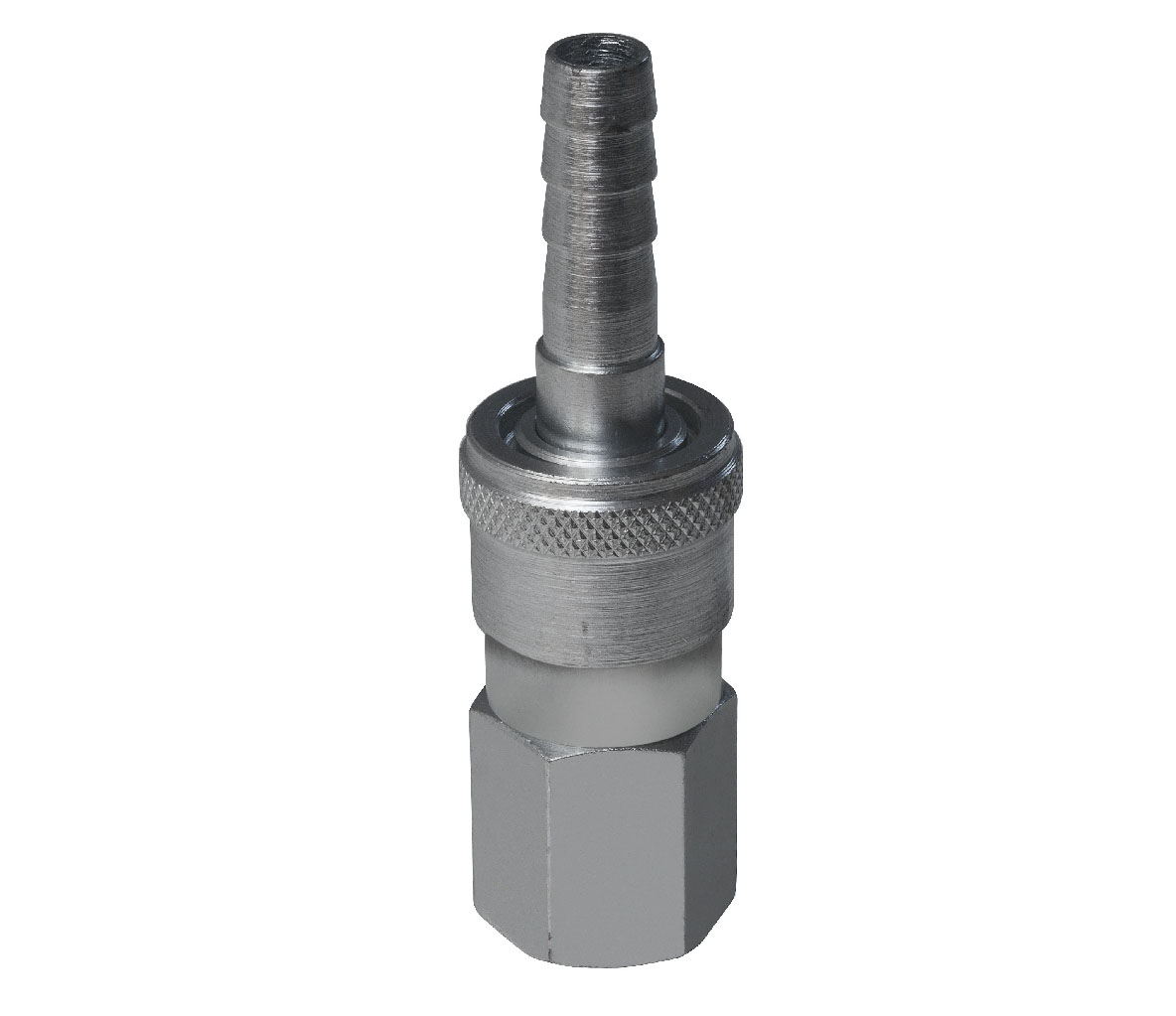

single shhutoff

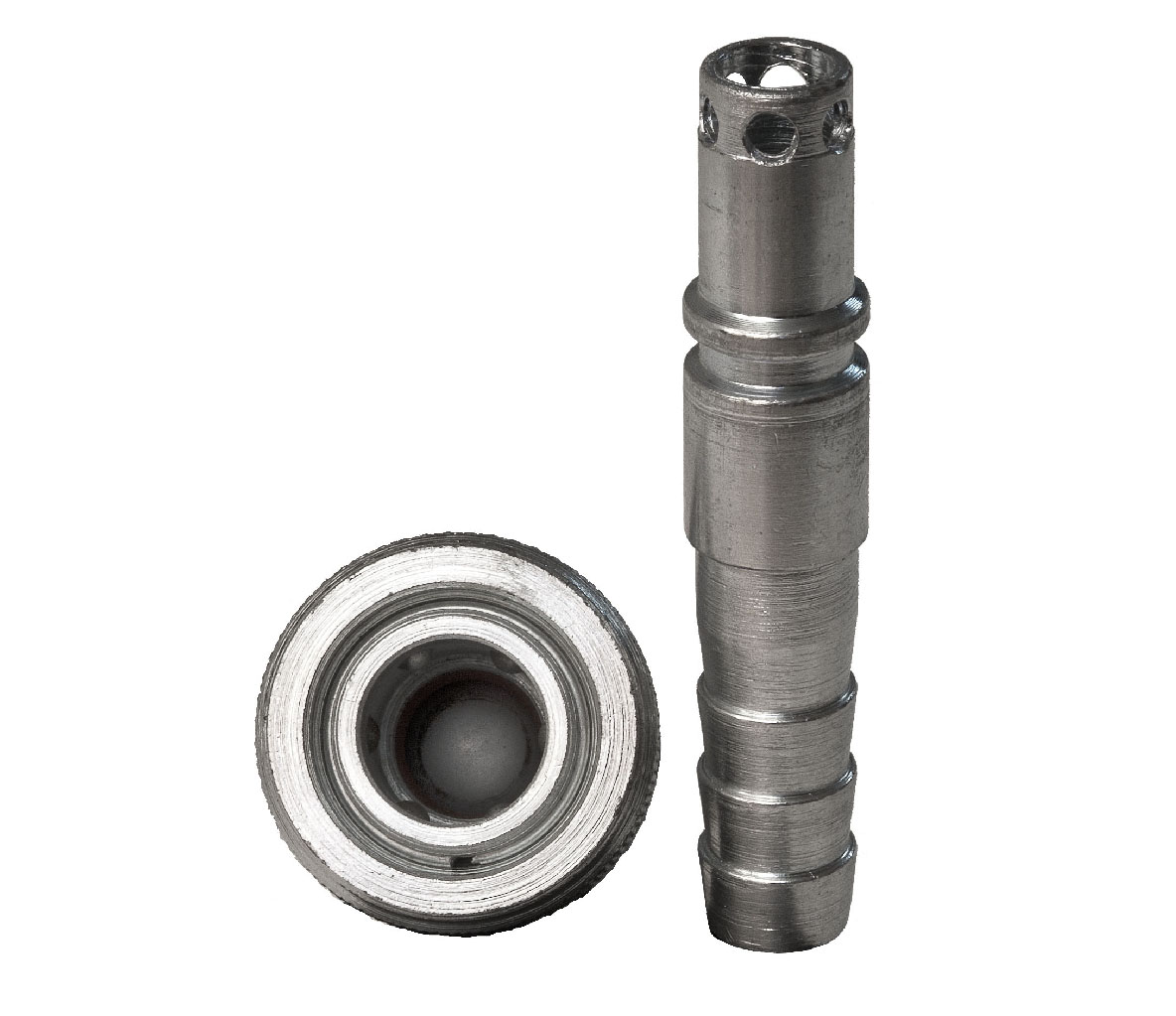

single shhutoff
male threading socket

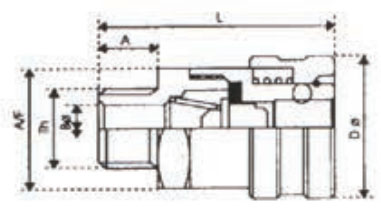

MALE THREADING SOCKET
SIZE L D ∅ A/F TH A B ∅
16-SM 55 22 19 1/4'' * 19 13 6.4
19-SM 57 25.4 22 3/8'' * 19 14 9.5
112-SM 63 35 30 1/2'' * 14 16 12.7
119-SM 67 38 32 3/4'' * 14 18 19.1
male threading plug

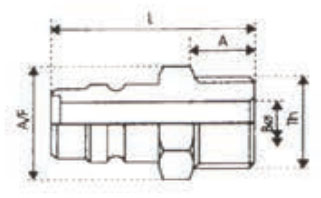

MALE THREADING PLUG
SIZE L A/F TH A B ∅
16-PM 41 14 1/4'' * 19 13 6.4
19-PM 42 19.1 3/8'' * 19 14 9.5
112-PM 50 25.4 1/2'' * 14 16 12.7
119-PM 55 30 3/4'' * 14 18 19.1
female threading socket

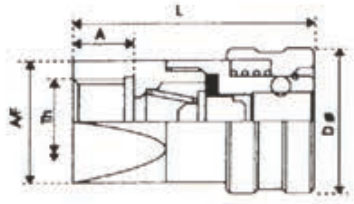

FEMALE THREADING SOCKET
SIZE L D ∅ A/F TH A
16-SF 50 22 19 1/4'' * 19 12
19-SF 51 25.4 22 3/8'' * 19 13
112-SF 57 35 30 1/2'' * 14 14
119-SF 61 38 32 3/4'' * 14 19
female threading plug

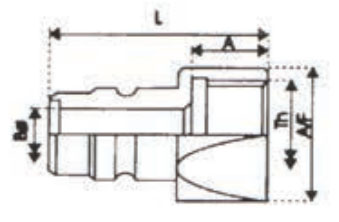

FEMALE THREADING PLUG
SIZE L A/F TH A B ∅
16-PF 36 16 1/4'' * 19 13 6.4
19-PF 37 17 3/8'' * 19 14 9.5
112-PF 41 30 1/2'' * 14 15 12.7
119-PF 45 32 3/4'' * 14 17 19.1
hose pipe socket

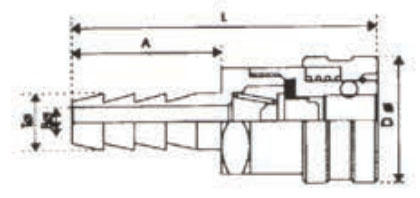

HOSE PIPE SOCKET
SIZE L D ∅ T ∅ A B ∅
16-SH 72 22 8 30 4.5
19-SH 76 25.4 11 34 7.5
112-SH 83 35 14.5 36 9.5
119-SH 92 38 21 45 17
hose pipe plug

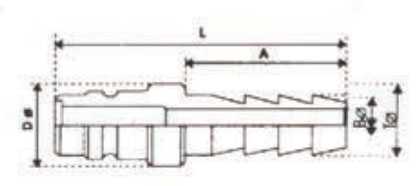

HOSE PIPE PLUG
SIZE L D ∅ T ∅ A B ∅
16-PH 57 14 8 30 4.5
19-PH 61 19.1 11 34 7.5
112-PH 66 25.4 14.5 36 9.5
119-PH 77 30 21 45 17
