Camlock Coupling

Applications
  • Loading & unloading of tanker for water, petrol and chemicals.
  • Internationally accepted design for Fire Fighting hose connections
  • For large vacuum or suction lines;
  • Flow of powders in chemical, pharmaceutical and Fertilizer industries
  • Cooling water connections for paper rolling mills.
  • Unloading from large storage tanks for paints or chemicals

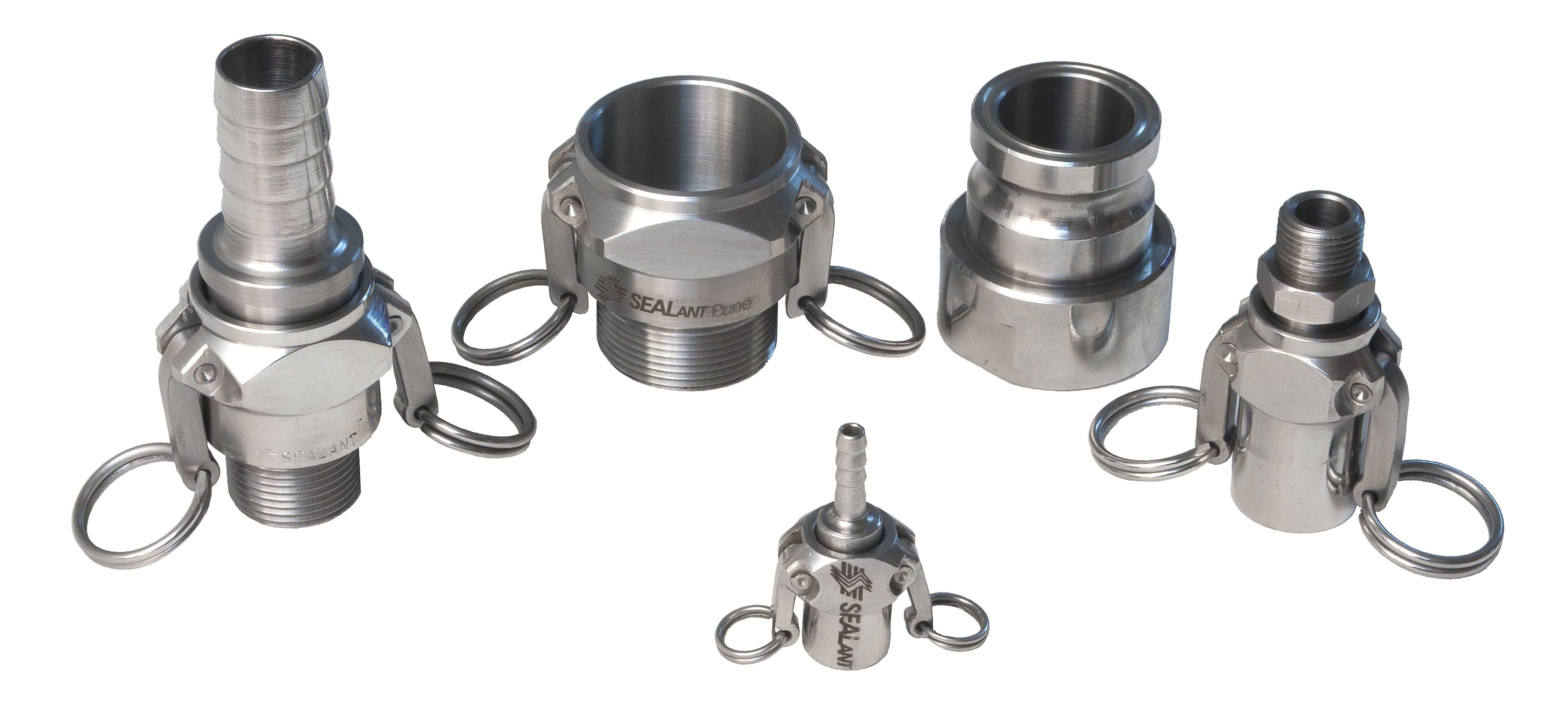

camlock coupling
General Features

We are one of the leading Camlock Coupling Manufacturer engaged in providing easiest way of connection on large diameter pipes. Gives uniform circular surface sealing No friction so no seal wear & hence longer life No hinderance to flow so the pressure drop is minimum. Can be locked to prevent accidental opening. We provided connector for leak test in India & connector for pressure test in India

Special Features of HPC model

All parts are machined out of drawn rods. Casting or Welding is not used. This increases the strength & capacity to withstand high pressures. Heat treatment & tempering gives high wear resistance where necessary.

Pressure Range - HPC model
Material Brass Steel Stainless Steel
Normal pressure (Kg/cm2) 22 80 70
Maxi pressure (Kg/cm2) 26 120 100

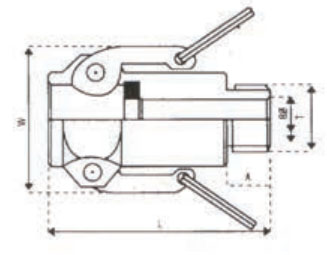

MALE THREADING SOCKET
SIZE L A T ∅ B ∅ W A/F
C12-SM 76 14 1/2'' * 14 12 54 32
C19-SM 78 18 3/4'' * 14 19 61 38
C25-SM 84 24 1'' * 11 25 67 46
C38-SM 84 24 1-1/2'' * 11 38 80 60
C50-SM 87 27 2'' * 11 50 92 72
MALE THREADING PLUG
SIZE L A T ∅ B ∅ Hx
C12-PM 52 14 1/2'' * 14 12 25
C19-PM 59 18 3/4'' * 14 19 30
C25-PM 65 24 1'' * 11 25 38
C38-PM 69 24 1-1/2'' * 11 38 56
C50-PM 74 27 2'' * 11 50 70
FEMALE THREADING SOCKET
SIZE L A T ∅ B ∅ W A/F
C12-SF 60 15 1/2'' * 14 12 54 32
C19-SF 60 19 3/4'' * 14 19 61 38
C25-SF 60 25 1'' * 11 25 67 46
C38-SF 60 25 1-1/2'' * 11 38 80 60
C50-SF 60 28 2'' * 11 50 92 72
FEMALE THREADING PLUG
SIZE L A T ∅ B ∅ Hx
C12-PF 47 15 1/2'' * 14 12 25
C19-PF 55 19 3/4'' * 14 19 32
C25-PF 61 25 1'' * 11 25 38
C38-PF 63 24 1-1/2'' * 11 38 56
C50-PF 66 28 2'' * 11 50 70
HOSE PIPE SOCKET
SIZE L A T ∅ B ∅ W A/F
C12-SH 74 38 14 9.5 54 32
C19-SH 84 45 21 16 61 38
C25-SH 94 55 27 22 67 46
C38-SH 99 60 40 34 80 60
C50-SH 109 70 52 46 92 72
HOSE PIPE PLUG
SIZE L A T ∅ B ∅ H ∅
C12-PH 72 38 14 9.5 24
C19-PH 85 45 21 16 30
C25-PH 93 55 27 22 38
C38-PH 100 65 40 34 50
C50-PH 110 70 52 46 65
